Optical Systems

Tracing

Our Monk Tracing work bench system allows trays to be continually fed to a line of tracing operators.  The operators can sit at their bench and simply remove a tray from the feed conveyor, then place the completed job on the outfeed conveyor.

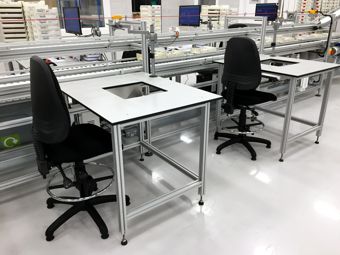

The workbench is ergonomically designed and has an optional cut out in the centre to take a tracing machine.

  • Single main feed conveyor minimises floor space
  • Sensors and control make sure operators are continually fed work
  • Control and software system
  • Quiet and smooth operation
  • Design can be tailored to suit your preferences
  • HMI touch screen for easy operation
  • Emergency stop safety circuit
  • Optional pneumatic low pressure pushers for safe operator use
  • Optional line mimic with fault flags
  • Optional bar code system to route trays to specific machines
  • Typical speeds of around 600 trays per hour* based on 10 sets of operator benches

*Feed rates vary depending on the size and speed of the machines.
