Heavy Belt Conveyors

Download PDF catalogue

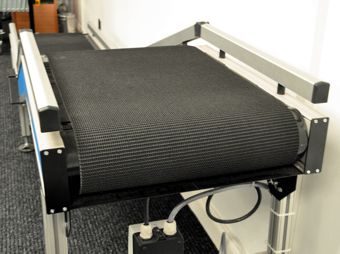

Aluminium Frame Heavy Duty Conveyor Type A

  • End drive units fitted with SEW geared motor units up to 0.55 KW
  • Black PVC endless smooth top conveyor belt
  • Black grip top conveyor belt
  • Can be supplied with 84 or 164mm high side guides
  • Optional pop out rollers at either or both ends
  • Full width aluminium under sheet fitted as standard
  • Available as incline, decline and horizontal.

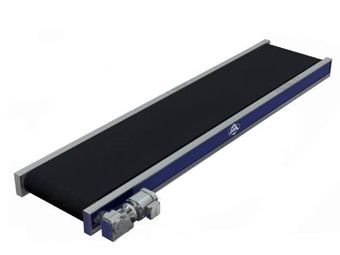

Aluminium Frame Drum Drive Heavy Duty Conveyor Type A1

  • Drive frame 0.18 kW up to 0.37 KW.
  • Black PVC endless smooth top conveyor belt
  • Black grip top conveyor belt
  • Can be supplied with 84 or 164mm high side guides
  • Full width aluminium under sheet fitted as standard (local to drums)
  • Available as incline, decline and horizontal

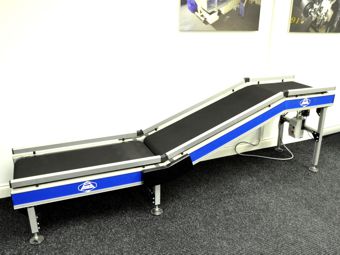

Aluminium Heavy Duty Incline Conveyor

  • Black grip top conveyor belt.
  • Can be supplied with side guides
  • Optional pop out rollers at either or both ends
  • Full width steel under sheet fitted as standard
  • Standard angles of 10б, 15б, 20б and 25б
  • Reversible
  • Available as incline, decline and horizontal



Aluminium Side Guides

  • Anodised aluminium extrusion
  • Replaceable plastic wear strip
  • Height to suit product
  • Can be formed into a curve



Steel Heavy Duty Conveyor Type A1 Drum Drive

  • Drive frame 0.18 kW up to 0.37 kW
  • Black PVC endless smooth top conveyor belt
  • Black grip top conveyor belt
  • Can be supplied with 84 or 164mm high side guides
  • Full width aluminium under sheet fitted as standard (local to drums )
  • Available as Incline, decline or horizontal

Steel Heavy Duty Conveyor Type B

  • Intermediate drive units fitted with SEW geared motor up to 1.5 kW.
  • Black PVC endless smooth top conveyor belt
  • Black grip top conveyor belt
  • Can be supplied with 60 or 150mm high side guides
  • Optional pop out rollers at either or both ends
  • Full width steel under sheet fitted as standard
  • Reversible
  • Available as incline, decline or horizontal



Steel Heavy Duty Conveyor Type B

  • Intermediate drive units fitted with SEW geared motor up to 1.5 kW.
  • Black grip top conveyor belt.
  • Can be supplied with 60 / 150mm side guides
  • Optional pop out rollers at either or both ends
  • Full width steel under sheet fitted as standard
  • Standard angles of 10б, 15б, 20б and 25б. Other angles upon request
  • Reversible
  • Available as incline, decline and horizontal
